Products Details：

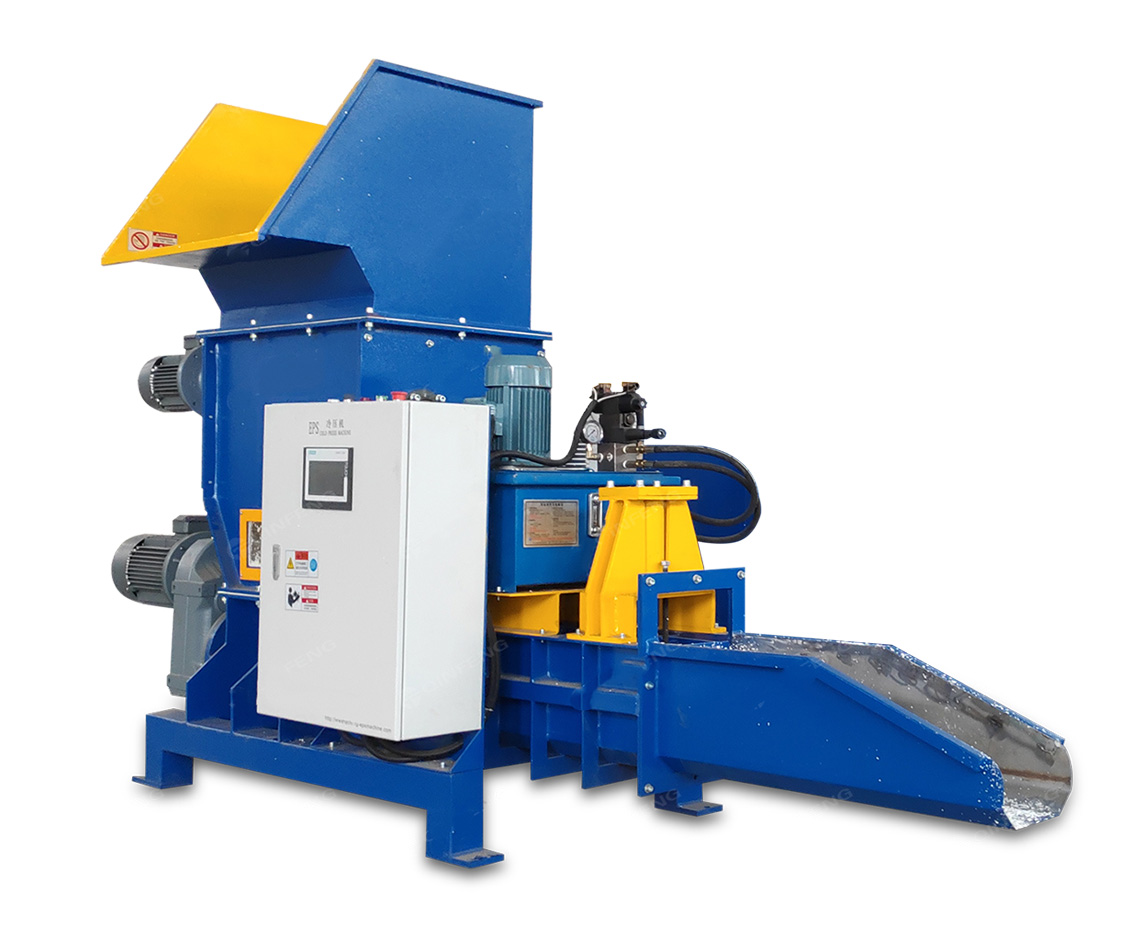

The EPS cold compactor is suitable for the EPS foam, EPP, and EPE waste, material can all treated by this unit, and the pressing ratio is 1:30-1:50.
According to the different application, different capacity, there are several models can be choosing
|
Model |
DS-CP150 |
DS-CP250 |
DS-CP380 |
|
Screw diameter |
Ø180mm |
Ø240mm |
Ø350mm |
|
Feeding size |
500×400mm |
900×600mm |
1000×900mm |
|
Screw speed |
36rpm |
42rpm |
42rpm |
|
Crusher blades |
8 sets |
9+10 sets |
10+11+10+11 sets |
|
Blade speed |
120rpm |
120rpm |
120rpm |
|
Main motor power |
4kw |
7.5kw |
15kw |
|
Crusher motor |
2.2kw |
2.2×2sets |
2.2×2sets |
|
Hydraulic motor |
/ |
1.5kw |
1.5kw |
|
Production size |
200×200mm |
250×250mm |
380×380mm |
|
Weight |
650kg |
1500kg |
2500kg |
|
Model |
DS-CP line |
DS-HCP |
|
Screw diameter |
Ø350mm |
|
|
Feeding size |
1000×900mm |
|
|
Screw speed |
42rpm |
|
|
Crusher blades |
10+11+10+11sets |
|
|
Blade speed |
120rpm |
|
|
Main motor power |
15kw |
|
|
Crusher motor |
2.2×4sets |
|
|
Hydraulic motor |
1.5kw |
15kw |
|
Production size |
380×380mm |
400×400mm |
