EPS lamination machine

Products Details：

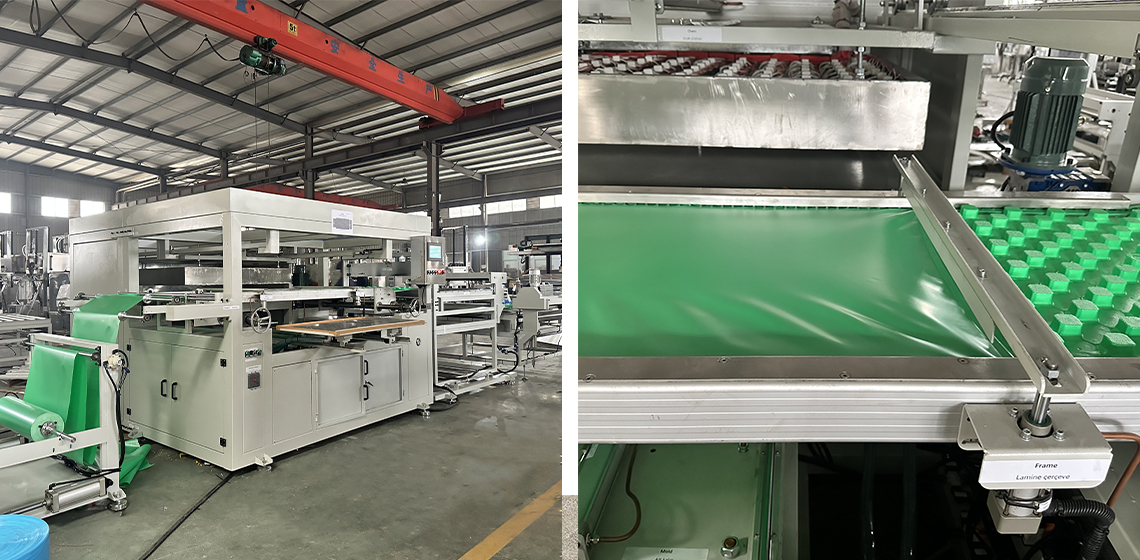

The lamination machine is suitable for laminating the EPS floor heating panel with HIPS sheet .

Functional design and features:

1. Pulling function: It adopts the form of frequency converter, variable frequency motor, and reducer to pull the plate. The output force is large, and the pulling speed can be adjusted at will. The encoder is used to control the pulling length, resulting in high precision of the pulling length.

2. Heating brick temperature control method:

Standard configuration: It adopts a two wire embedded far infrared ceramic heating brick for heating, with a heating brick size of 120cm square. The heating power of each heating brick can be independently controlled to achieve uniform temperature throughout the layout, and any heating brick can be turned off.

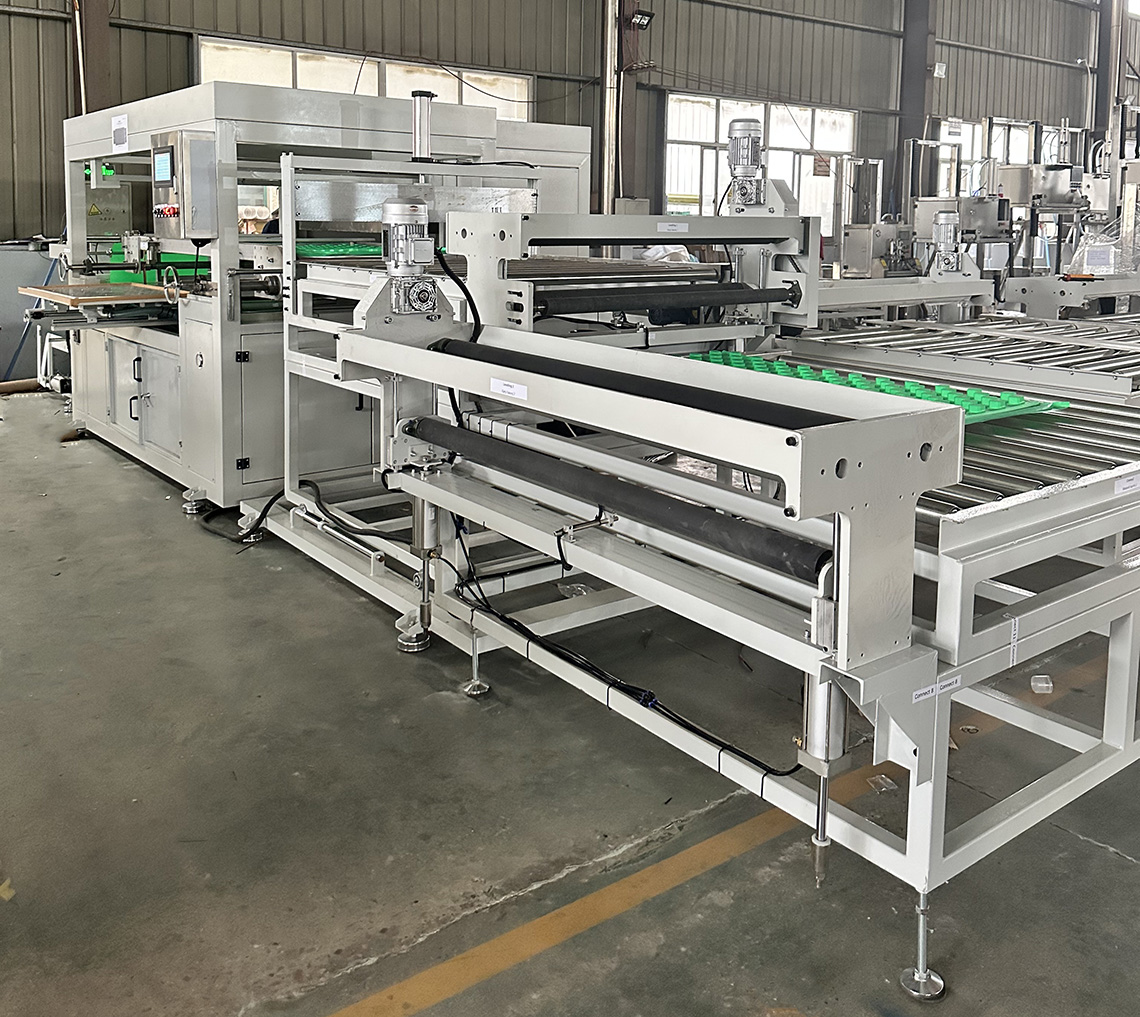

3. Automatic flattening function: After the EPS panel is coated with film, due to the cooling shrinkage of the film, the EPS panel protrudes and deforms towards the uncoated side. This machine is equipped with horizontal and vertical automatic flattening mechanisms at the discharge point to flatten the coated EPS panel horizontally and vertically.

4. Oven forward and backward movement function: The electric furnace oven adopts an automatic forward and backward movement mode, which can ensure that the plastic sheets are not affected by the preheating of the oven.

6. The width of the guide rail spacing can be adjusted: according to different sizes of modules, or manually adjust the distance between the two slide rails according to the width of plastic sheets to meet production requirements.

7. Product mold tray forward and backward movement function: The tray for placing the EPS panel to be coated is moved forward and backward. When placing, the tray is moved outside the machine, and the operator can easily place the EPS panel outside. The tray design has a delayed entry function, and the plastic sheet is heated and softened before entering, reducing the deformation caused by long-term heating of the foam board.

8. Replaceable function of the mold plate: the mold plate of different specifications and sizes needs to be replaced when the eps foam plates of different specifications and sizes are coated. The replaceable function of the mold plate realizes the multi-purpose of one machine.

Length	800~1380mm
Width	600~960mm
Height	100mm
Sheet thickness	0.03~2mm
Working speed	2~3 panels per minute according to the different thickness of sheet
Power	Pneumatic
Machine overall size	920033002100mm
Weight	4.81
